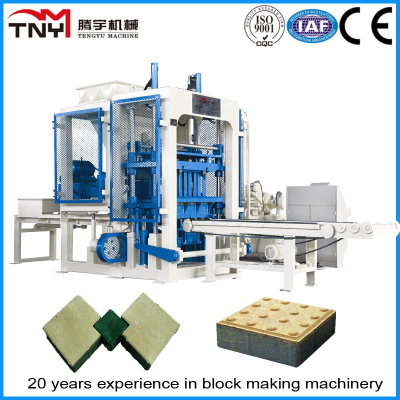

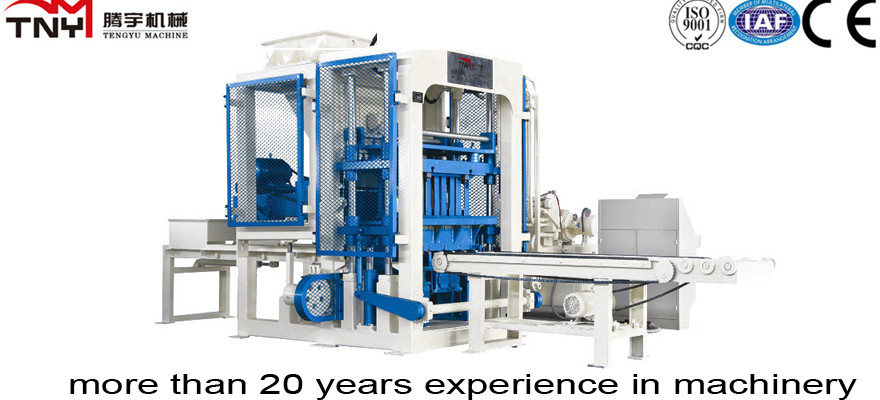

QT4-15 concrete block making machine, automatic block paver makign machinery

QT4-15 concrete block making machine, automatic block paver makign machinery

  • Min.Order Quantity: 1 Set
  • Supply Ability: 5 Sets per Month
  • Port: Lianyungang
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1998-04-17
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20
  • Place of Origin:  Suqian, Jiangsu, China
  • Brand Name:  concrete block machine
  • Model Number:  QT4-15
  • Weight: 6800.000 kg

1. Reliability. The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting , ensure the best operation effect of the machine.
3. Unique design. The special loading and supply unit, the multi-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed box moves to up of mold box, the feed will smoothly and equalization, than for the product, the intensity is insured and the weight is equal.
4. Design with super strong vibrating activated force, The computer controls the pressure and flowing rate of hydraulic system; vertical synchro-vibration; frequency conversion; brake, final the product reaches the high density and high strength within short time.
5. Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold , such as wall block, honeycomb type block, road block and slope block.


  • Size:  20
  • Place of Origin:  Suqian, Jiangsu, China
  • Brand Name:  concrete block machine
  • Model Number:  QT4-15
  • Weight: 6800.000 kg



1. Main Technical Performance and Parameters:

Cycle Time (s)

Pallet Size (mm)

Power (kw)

Weight(Kg)

Specification (mm)

12—18

900x540x40

26.8

6800

6120x2240x2750

Theoretical Output Table:

Type

specification mm

No./pallet

Block/hour

Block/8hours

Remark

Block

400×200×200

4

960

7680


Porous brick

240×115×90

14

3360

26800


Solid brick

240×115×53

28

6720

53760


Ground brick

200×100×60

16

2880

23040
