- Place of Origin: Jiangsu Province
- Brand Name:
- Model Number: QT10-15
Intorduction:

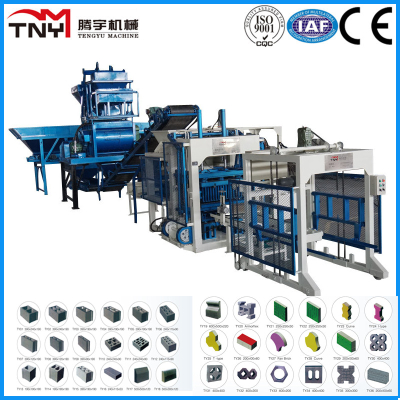

1. Super-strong steel structure, made of extensive imported original parts, ensuring more stability and reliability for the main machine body.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.
3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion,
and braking, with synthetic output compounded with double vibration sources, thus greatly increase product compactness and mold-box service life.
4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.
5. Fitted with special hydraulic loading unit, readily realize mass and automatic production, saving a great deal of human power, maintenance field, and circulating fund investment.
- Place of Origin: Jiangsu Province
- Brand Name:
- Model Number: QT10-15
Main Technical Performance and Parameters:
Cycle Time (s) | Pallet Size (mm) | Power (kw) | Weight(Kg) | Machine Specification |
12—18 | 1080x850x40 | 36.25 | 13800 | 7200x2290x2825 |
Theoretical Output Table:
Type | specification （mm） | No./pallet | Block/hour | Block/8hours | Remark |
Block | 390×190×190 | 10 | 2400 | 19200 | |
Porous brick | 240×115×90 | 24 | 5760 | 46080 | |
Standard brick | 240×115×53 | 48 | 11520 | 92160 | |
Ground brick | 200×100×60 | 31 | 5580 | 44640 |
